喷头

Print head

类型 Type

日本工业喷头理光G6MH5320 工业打印头

Japanese industrial print head Ricoh G6 MH5320

排列方式

Arrangement

4×16

数量/颜色

Quantity/Color

64头/8色(可以兼容32头、48头、72头)

64 heads/8colors(compatible with 32 heads,48 heads,72 heads)

 精度

Precision

508x600dpi

508x600dpi

508x600dpi

508x600dpi

604x600dpi

604x600dpi

604x600dpi

604x600dpi

635x600dpi

635x600dpi

635x600dpi

635x600dpi

604x900dpi

604x900dpi

604x900dpi

604x900dpi

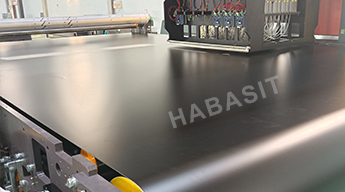

导带Guide belt

Habasit

最大打印宽度Max print width

1850mm

2250mm

2650mm

3050mm

车速(八色模式)

Machine speed

(8 color mode)

1 pass

1690m2/h

1900m2/h

2300m2/h

2600m2/h

2 pass

982m2/h

1150m2/h

1350m2/h

1480m2/h

3 pass

700m2/h

800m2/h

950m3/h

1100m2/h

适用墨水

Compatible ink

墨水类型 Ink type

涂料、活性、高温分散、酸性

Coating,active ink,high-temperature dispersion,acidity

墨水颜色 Ink color

青C、品红M、黄Y、黑K、橙O、大红R、B宝蓝、G绿；可选LM、LC、LK

Cyan C,magenta M,Yellowy,Black K,Orange O,bright red R,B sapphire blue,G green;optional LM,LC,LK

打印介质

Print media

棉、麻、丝绸、羊毛、化纤、混纺及多种新型纤维类梭织物和针织物面料

Cotton,linen,silk,wool,chemical fibers,blends and a variety of new fiber woven and knitted fabrics

软件Software

西班牙RIP软件 Spanish RlP software

图像类型 Image Type

文件格式（file format）：TIF/JPG/EPS/PDF,色彩模式（color pattern）：RGB/CMYK

数据传输Data Transmission

千兆光纤（Gigabit fiber）/USB3.0

功能配置

functional

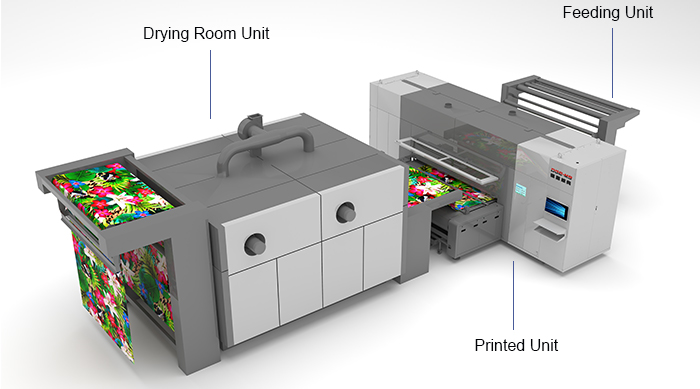

进布系统

Fabric feeding system

自动恒张力进料Automatic constant tension feeding

针织(弹力)面料进料系统Knitted (elastic) fabric feeding system

可调张力分丝上布系统 Adjustable Tension Warp Separation and Fabric Feeding System

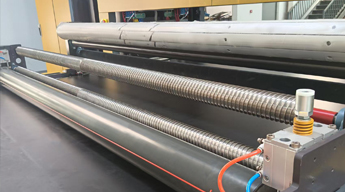

移动压力辊Movable pressure roller

喷头高度

Print head Height

2~30mm可调(Adjustable)

织物烘干

Fabric drying

热风烘干系统Hot air drying system

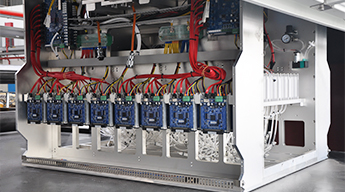

供墨系统

ink supply system

工业级负压脱气供墨，喷头墨水内循环功能

Industrial-grade negative pressure degassing ink supply,print head ink internal circulation function

智能清洗

Intelligent cleaning

自动清洗与自动保湿Automatic cleaning and automatic moisture retention

水洗系统

Washing system

双毛刷辊Double-brush roller,双洁净辊Double clean roller,

双海绵Double-layer sponge,智能喷淋Intelligent Sprinkler,

除水风刀Water-removing air knife,多重干燥Multiple drying

磁棒收水The magnetic rod collects water

工作环境

work environment

电源Power supply

380VAC±5%,三相五线(Three-phase five-wire system),50HZ

功率Power

打印系统(Printing system)：20KW加热系统(Heating system)：20-80KW

气压Air pressure

6~8Mpa手动调节(manual adjustment)

温湿度

Temperature and humidity

环境室温：推荐25-30℃,环境湿度：推荐60-80%

Ambient temperature:Recommended 25-30℃

Ambient humidity:Recommended 60-80%

尺寸重量

Dimension & weight

机器尺寸(mm)

Machine size

5000*5600*2450

5000*6000*2450

5000*6400*2450

5000*6800*2450

机器重量(Kg)

Machine weight

11500

12000

13000

14000
